Galvanized Steel Anchor Plate for clamping with counter plate
Compatible with Intermediate brackets or extremity plate (hardware included) . Minimum flange : 150 mm / Maximum flange : 220 mm
Product code: FA6020700
Description
FA6020700
Designed to be installed on a beam by clamping, horizontally or vertically.
Compatible with the Stainless steel extremity plate FA 60 201 00.
Material: Galvanized steel.
Weight: 12.5 kg

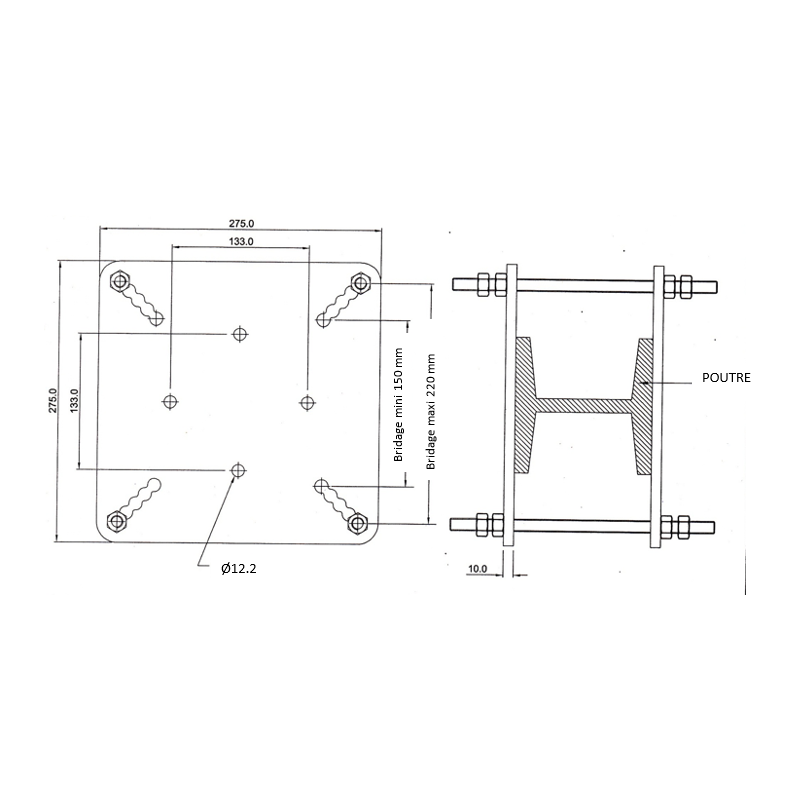

Dimensions:
- Length: 275 mm
- Width: 275 mm
Allowed beam width:
- Minimum clamping: 150 mm
- Maximum clamping: 220 mm
Hardware:
- 4 pcs. of M12 threaded studs, length 350 mm,
- 2 screws CSK M12x45, 2 Nylock nuts and 2 washers for fixing the extremity plate.
Compliance: EN 795:2012 Type A
Static strength > 12 kN
Breaking strength > 26 kN
HS Code : 73269098
