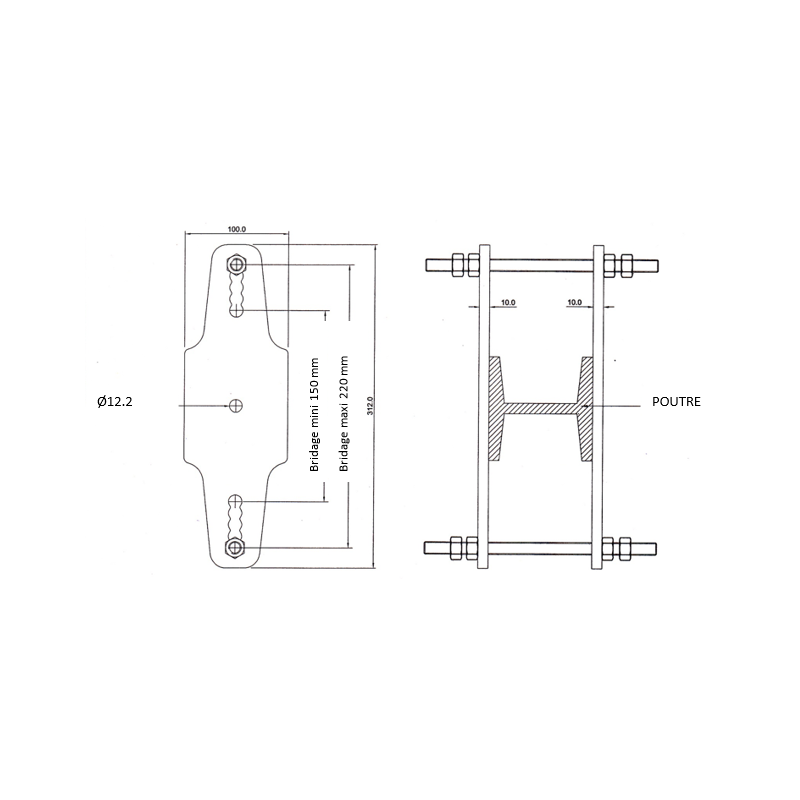

Galvanized Anchor Plate for clamping on metal beam
Compatible with Intermediate brackets with 2 full threaded stud in Stainless Steel (hardware included)
Minimum flange : 150 mm
Maximum flange : 220 mm
Product code: FA6021300
Description
FA6021300
Anchor plate for clamping on metal beam

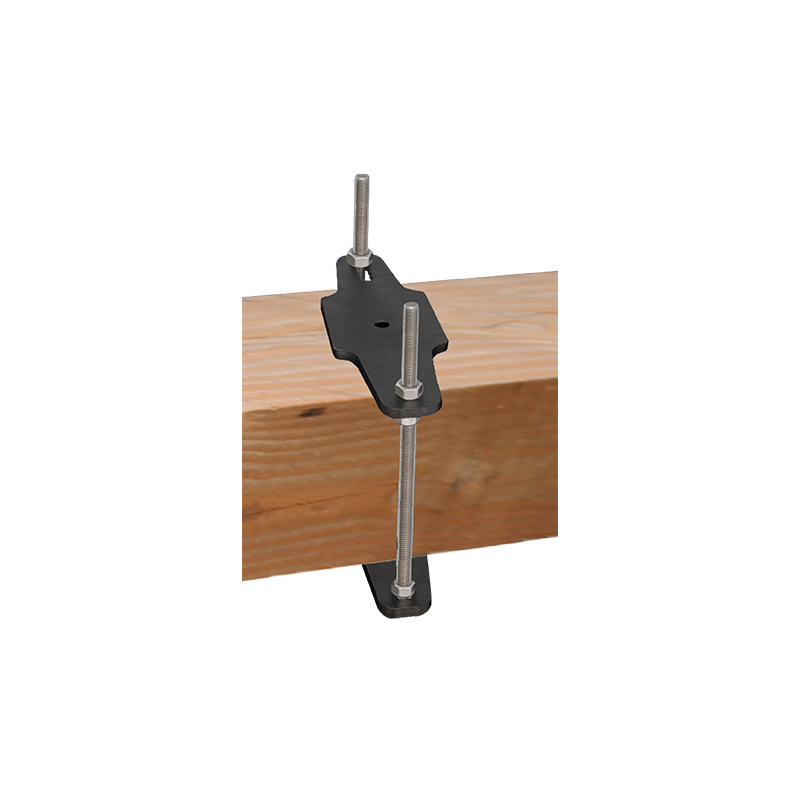

Designed to be fixed on a beam, by clamping, horizontally or vertically.
Compatible with the intermediate bracket FA 60 204 00.
Material: Galvanized steel
Weight: 3.9 kg
Minimum clamping: 150 mm
Maximum clamping: 220 mm
Hardware:
- 2 pcs. of M12 threaded studs, length 350 mm,
- 1 CSK M12x30 screw, 1 Nylock nut and 1 washer for fixing the intermediate bracket.
Breaking strength > 15 kN
HS Code : 73269098
