Post 500 mm Rigid post in galvanized steel compatible with Intermediate brackets and extremity plate (hardware included). Can be used with the anchore plates for clamping,
Product code: FA6021150


Description
Rigid post for lifeline, designed to be installed as an extremity point, an intermediate point or an angle.

Can be installed by clamping on a beam, by clamping on a metal beam or by chemical fixing in concrete through 4 pcs. of stainless steel M12 threaded studs.

Compatible with the intermediate bracket FA 60 204 00 and the extremity plate FA 60 201 00.

Material: Galvanized steel

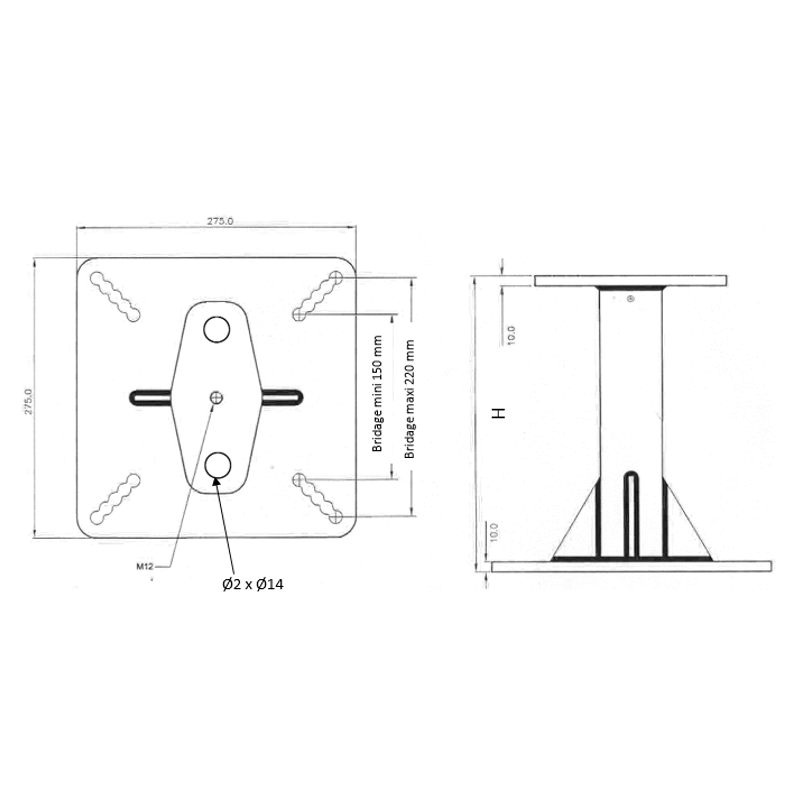

Dimensions:
- Height: 500 mm
- Width: 275 mm

Minimum clamping: 150 mm

Maximum clamping: 220 mm

Hardware:
- 2 CSK M12x45 screws, 2 Nylock nuts and 2 wahsers for fixing the extremity plate.
- 1 pc. of M12x30 hexagonal head bolt for fixing the intermediate bracket.

Breaking strength > 26 kN

HS Code : 73269098
Downloads
Instruction - KS Line Instruction Download
Data sheet - FA6021150 Data sheet Download
